Qwetu Petroleum’s in-depth understanding of the African Oil & Gas landscape, coupled with Guidant global engineering prowess, creates a powerful synergy. We can provide our clients with a comprehensive range of services, including:
- Concept engineering and feasibility studies
- Front-End Engineering Design (FEED) packages
- Detailed engineering and design
- Procurement and construction services
- Project management and execution
- Commissioning, start-up, and operational support

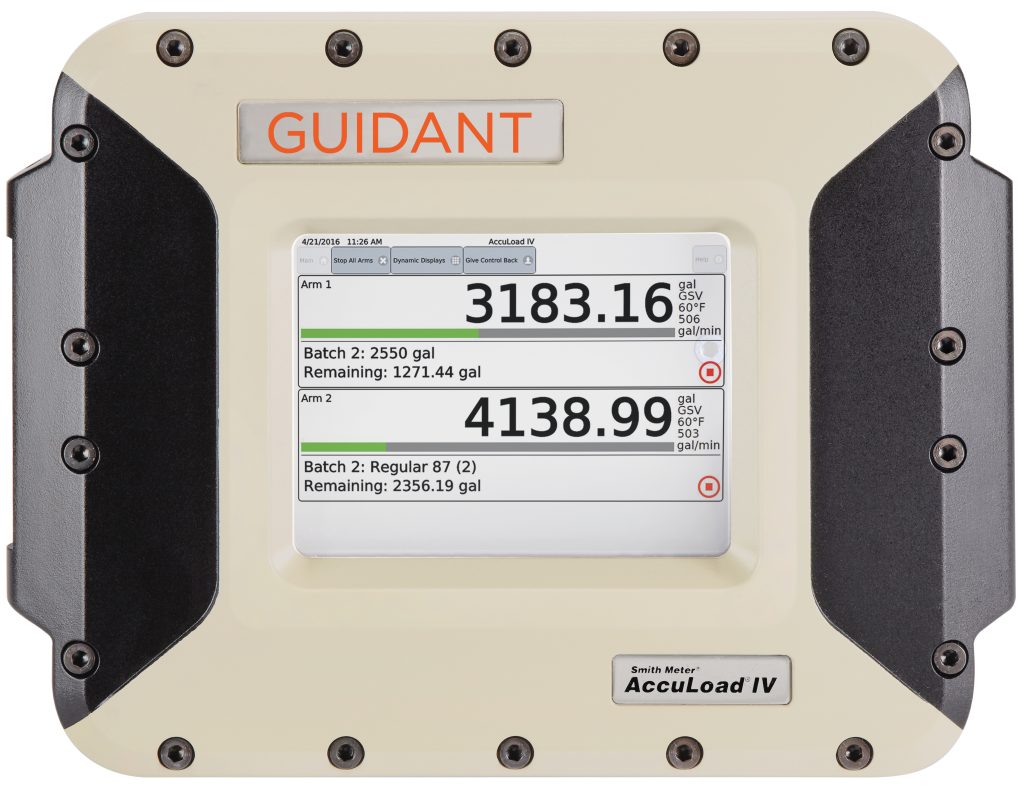

Single Touch Screen (ST)
Explosion-proof enclosure
Two-arm operation
Up to four single- or dual-
pulse product meter inputs
Up to four additive-meter
inputs
Up to 24 additive-meter
inputs with A4I module
AccuLoad III to IV Upgrade Kit (UG3)

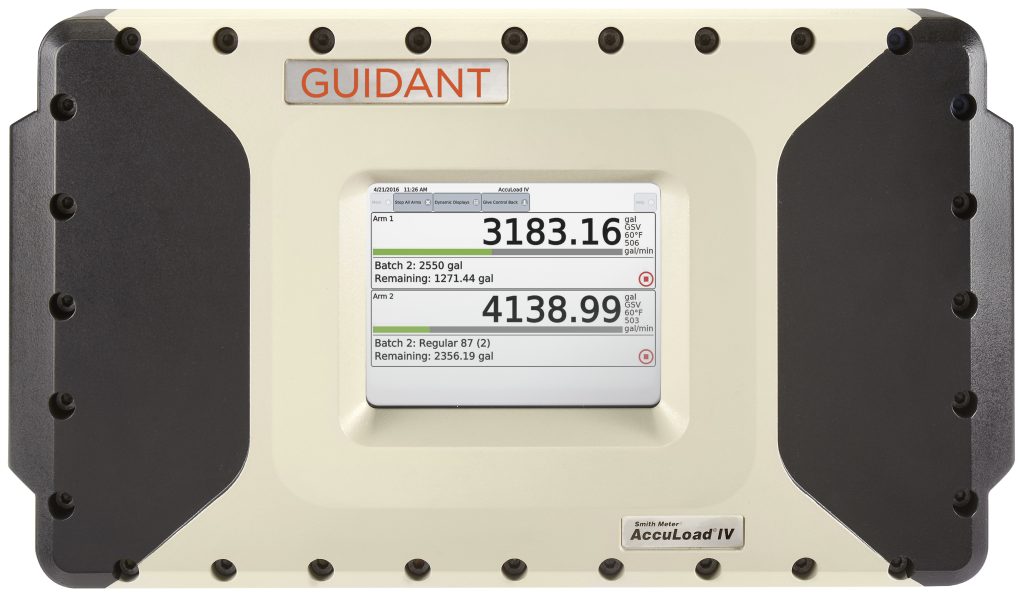

Quad Touch Screen (QT)
Up to six-armoperation
Up to six single- or dual-pulse product meter inputs
Up to four additive-meter inputs
Up to 24 additive-meter inputs with A4I module
AccuLoad III to IV Upgrade Kit (UG3)
NEMA 4 (N4)
One- or two-arm operation
Up to four single- or dual- pulse product meter inputs
Up to four additive-meter inputs with local I/O
Up to 24 additive-meter inputs with remote A4I module
Stainless steel enclosure
Integrated card reader, indicator lights, and stop button options

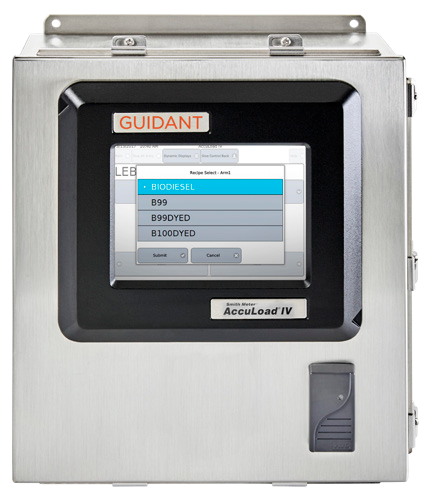

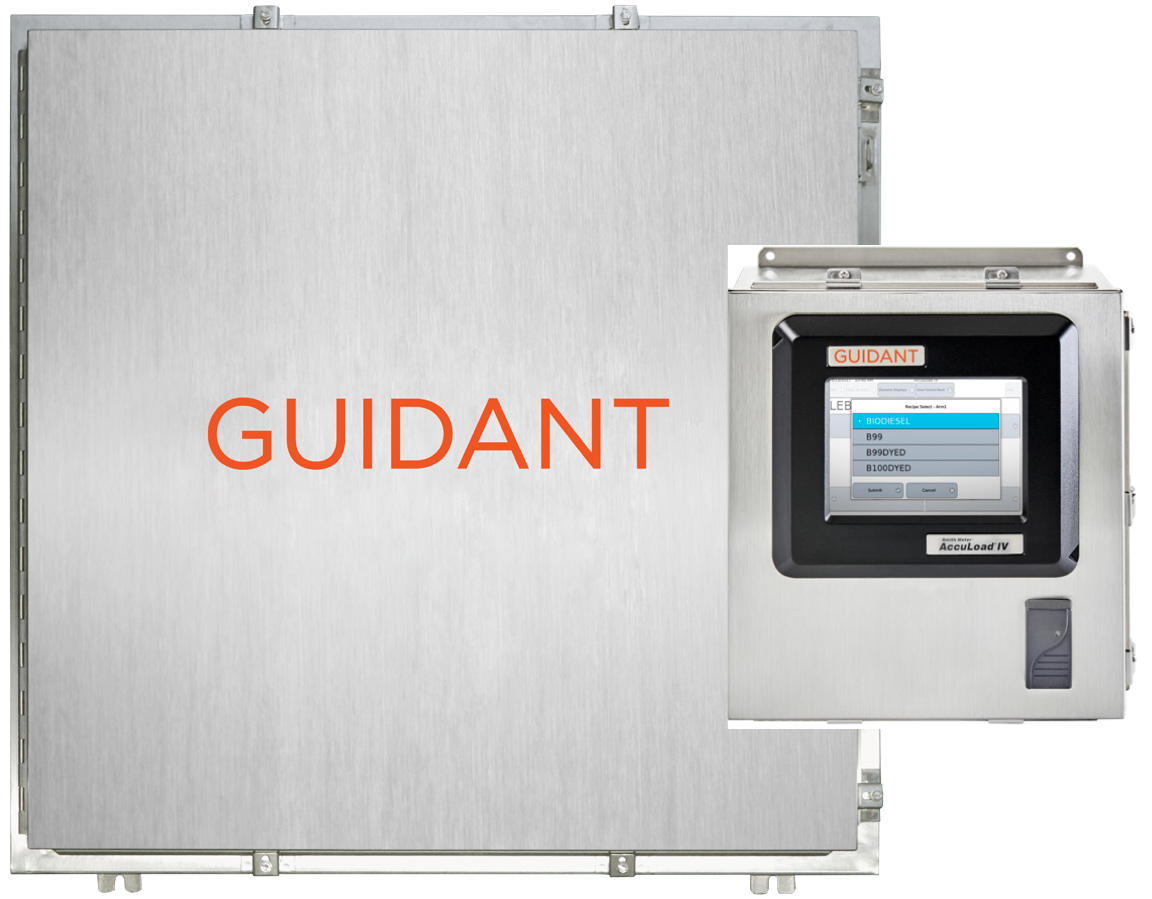

Split Architecture (SA)
Up to eighteen-arm operation
Up to 24 single- or dual- pulse product meter inputs
Up to 56 additive-meter inputs with A4I module
Up to 96 additive-meter inputs with remote A4I module
Integrated card reader, indicator lights, and stop button options on the man-machine interface (MMI)
AccuLoad III to IV Upgrade Kit (FMU)

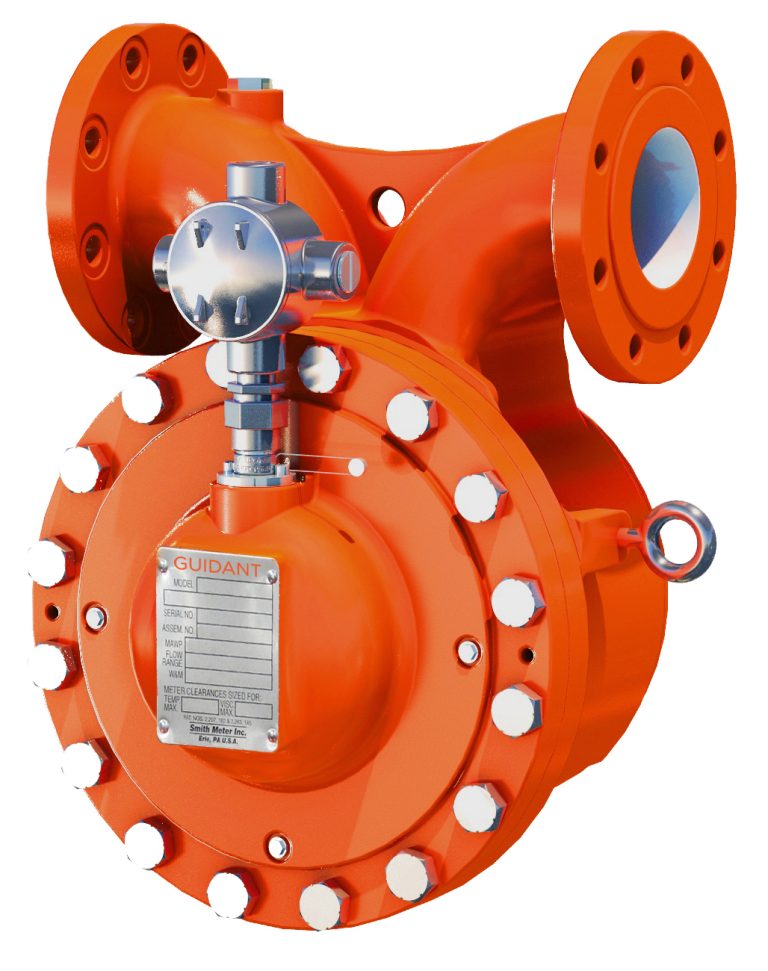

PD Meter – prime 4
The Smith Meter PRIME 4 meter is a 4-inch, single-case, positive-displacement meter designed for maximum accuracy and reliability. The PRIME 4 meter is ideal for loading-rack service and custody transfer of petroleum products.
Applications include gasolines and oxygenates, ethanol, kerosene, diesel fuel, jet fuels, and fuel oils.

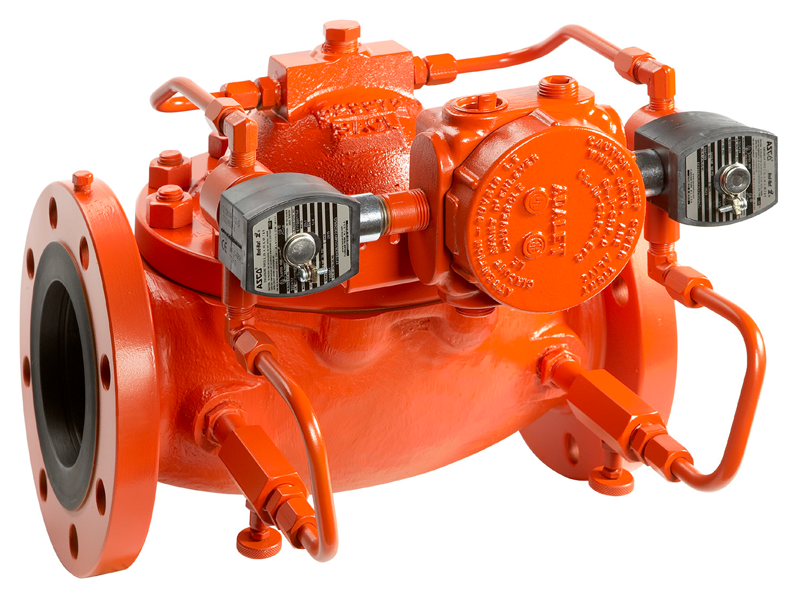

Smith Meter® Model 210 Digital Electro-Hydraulic
The Smith Meter® Model 210 Valve fundamentally consists of a Smith Meter® 200 Series Valve with two solenoid controls. A valve response control device, typically a needle valve, is located between each solenoid and its respective upstream or downstream port.

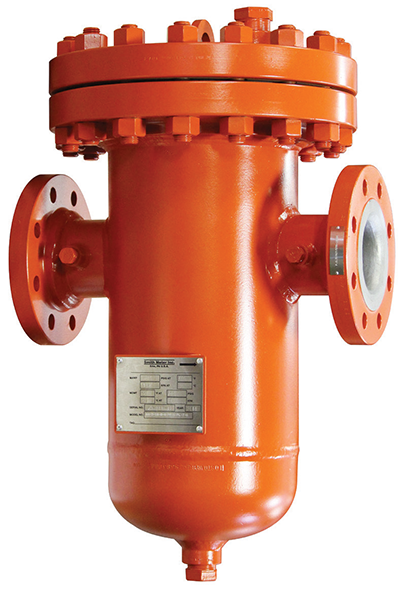

Pipeline Strainers
Metering system components require protection against the damage potential of dirt and debris. Smith Meter® Pipeline Strainers provide this protection for 4″ and larger turbine and positive displacement meter applications.
FuelFACS Terminal Automation System
Guidant ’s end-to-end terminal management solution for measurement, accounting and control allows customers to manage and optimize all their facilities from one single integrated interface. Our terminal management systems are based on Guidant ’s scalable FuelFACS™ and smart, reliable measurement equipment; improving terminal throughput, increasing premises and data security and providing traceable and accurate measurement data.
Along with excellent global support, our solutions can be applied to marine, pipeline and terminal applications to help you understand the health of your facilities and optimize the transportation and storage of energy products across the downstream value chain for faster and safer product delivery.
