A wide range of paired and multicore cables which are XLPE insulated. The cables are screened with an aluminium/mylar tape which gives protection against interference . Paired cables can be overall or individually and overall screened. Multicore cables are overall screened .
The standard range is sheathed with flame retardant pvc but can also be done with low halogen and halogen free compounds. The whole range can be done in steel wire armoured, APL, FR or unarmoured .
Instrumentation Cables
Control Cables
Instrumentation Cables

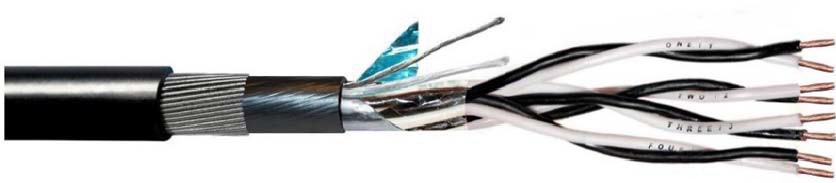

Multi-pairs—XLPE Insulated, Overall screened
Applications & features
It is used for transmission of analogue and digitalvsignals in process control systems. It will be used for indoor and outdoor installation, in dry and wet locations, on racks, and in conduits. Not allowed for direct connection to low impedance source,e.g. the public mains electricity supply. It is not recommended for direct burial.
Technical Information
| CONDUCTOR | RESISTANCE | VOLTAGE RATING | CAPACITANCE NOMINAL | INDUCTANCE | ||
|---|---|---|---|---|---|---|
| AREA | (mm2) | (Ω/km) | (V) | MUTUAL (pF/m) | GROUND (pF/m) | (mH/km) |
| 0.5 | 0.5 | 39.00 | 150/250 | 84 | 158 | 0.674 |
| 1.0 | 1.0 | 19.50 | 300/500 | 104 | 196 | 0.624 |
| 1.5 | 1.5 | 13.30 | 300/500 | 101 | 190 | 0.599 |
Construction
Plain annealed multi stranded copper conductor, cross linked polyethylene (XLPE) insulated, cores twisted into pairs. The cores are black and white. Each core is alpha numerically numbered. The cable is overall foil screened with a tinned copper drain wire. The sheath can be flame retardant PVC low halogen or halogen free compound in black or coloured on request.
Control Cables

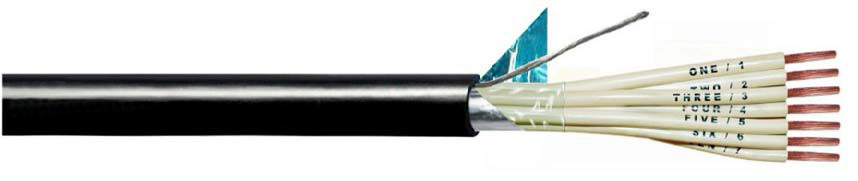

Multi-cores—XLPE Insulated, Ov e r a l l screened, Unarmored
Applications & features
It is used for transmission of analogue and digital signals in process control systems. It will be used for indoor and outdoor installation, in dry and wet locations, on racks, and in conduits.
Not allowed for direct connection to low impedance source, e.g. the public mains electricity supply. It is not recommended for direct burial.
Electrical Data
| CONDUCTOR | AREA | CONDUCTOR RESISTANCE | VOLTAGE RATING |
|---|---|---|---|
| 0.5mm2 | 0.5mm2 | 39.00 Ω/km | 300/500v |
| 1.0mm2 | 1.0mm2 | 19.50 Ω/km | 600/1000v |
| 1.5mm2 | 1.5mm2 | 13.30 Ω/km | 600/1000v |
Construction
Plain annealed multi-stranded copper conductor, cross-linked polyethylene (XLPE) insulated, overall foil screened with tinned copper drain wire . Colour coded cores up to 4 core , Thereafter white numbered cores identified by black alpha numerical marking . Sheath can be flame retardant PVC low halogen or halogen free compound in black or coloured on request .
