Pratley
PRATLEY is a leading manufacturer of high-quality cable glands, junction boxes, and other electrical equipment. Pratley supplies Qwetu Petroleum with reliable and innovative solutions for hazardous environments, ensuring safety and compliance in Oil & Gas operations.

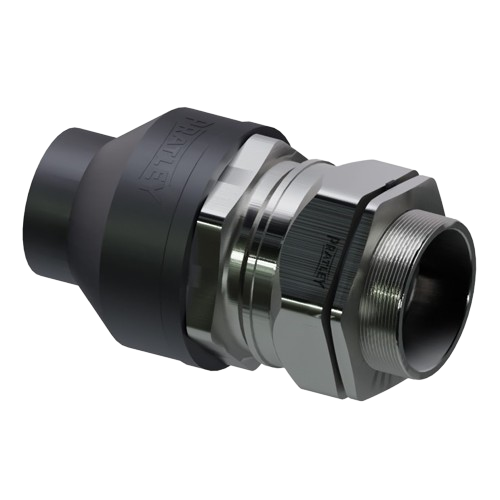

Cable Glands
GLAND SELECTION CHART
| Gland Size | Catalogue Number | Nipple Thread Min. | Bedding Dia. | Max Cable Bedding Dia. |
|---|---|---|---|---|
| 0S | 16200 | M20 x 1.5P | 8.0mm | 10.2mm |
| 0L | 16201 | M20 x 1.5P | 10.3mm | 12.6mm |
| 1S | 16202 | M20 x 1.5P | 12.6mm | 14.2mm |
| 1L | 16203 | M20 x 1.5P | 14.2mm | 15.8mm |
| 2S | 16204 | M25 x 1.5P | 15.8mm | 18.0mm |
| 2L | 16205 | M25 x 1.5P | 18.0mm | 20.4mm |
| 3S | 16206 | M32 x 1.5P | 20.4mm | 23.4mm |
| 3L | 16207 | M32 x 1.5P | 23.4mm | 26.4mm |
| 4S | 16208 | M40 x 1.5P | 26.4mm | 30.6mm |
| 4L | 16209 | M40 x 1.5P | 30.6mm | 34.8mm |
| 5S | 16210 | M50 x 1.5P | 34.8mm | 39.1mm |
| 5L | 16211 | M50 x 1.5P | 39.1mm | 43.5mm |
| 6S | 16212 | M63 x 1.5P | 43.5mm | 49.7mm |
| 6L | 16213 | M63 x 1.5P | 49.7mm | 56.0mm |
